Self-drilling screws are a great tool for quickly and securely joining materials together. They eliminate the need for pre-drilled pilot holes, which makes them incredibly convenient to use in any application. From softwoods to hardwoods, metal to plastic - self-drilling screws can handle it all! This article will explore what self-drilling screws are, why they are used, and how to use them in various materials.

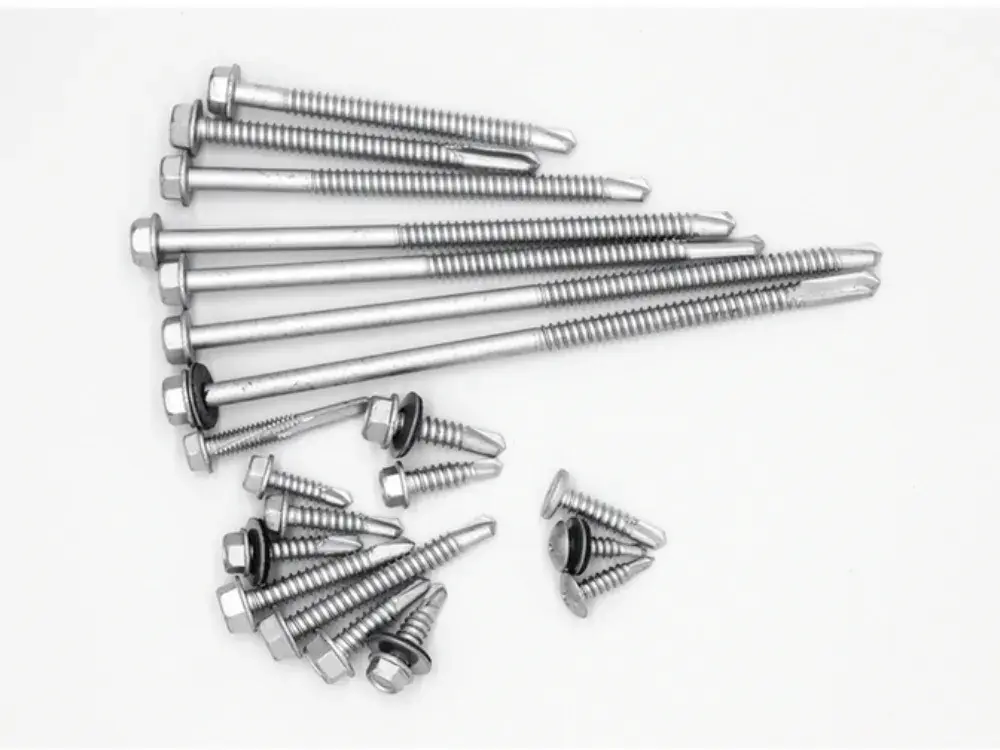

Self-drilling screws are a type of fastener that is designed to drill its own hole as it is screwed into the material. They have a sharp point at the tip which helps to create the hole as it is driven into the material. The threading on these screws also helps to pull the screw into place as it is being driven in. This eliminates the need for pre-drilled pilot holes, so they are an ideal choice for many applications where speed and convenience are important.
Self-drilling screws are used in a variety of applications where speed and convenience are important factors. They can be used in wood, plastic, and metal materials with ease and can be used to quickly secure items together without having to pre-drill pilot holes.
When selecting a self-drilling screw, the thickness of what you are connecting and the types of materials must be taken into consideration. Here is an essential list of design features to contemplate when deciding on which fastener best suits your needs:
The grooves in the screw tip provide an outlet for the drilled material that performs similarly to flutes on drill bits. Debris accounts for roughly 80% of all heat generated when drilling, so if it accumulates too much then this may cause the point to overheat and malfunction.
The length of the point dictates the thickness of material the screw can dependably puncture. Before any threads engage, all of the unthreaded element (pilot section) must be able to entirely bore through whatever it is penetrating.
Point wings are a common feature with some self-drilling screws used to attach thicker materials, such as wood, onto metal. The purpose of the wings is to widen the hole in the fastened material so that threading can occur without touching it. This gap prevents any stress from forming on both surfaces and thus keeps them firmly connected.
Point wings will break away once they hit contact with metal, before actually engaging in it.
The grip length of the screw is the distance between the underside of the head and the point of the drill bit. This measurement is important to ensure that the screw threads fully engage with the material being fastened. If the grip length is too short, the screw may strip out or not hold tight enough.
If the grip length is too long, the screw may bottom out and not tighten enough.
Different materials require different thread counts and spacing in the self-drilling screws to ensure proper engagement and grip. For example, softwoods need screws with tighter threads for a better grip, while hardwoods require less thread spacing to avoid splitting.
The shape and size of the head determine how the material will be held together, and the suitability of the screw head for the application.
Self-drilling screws present a great advantage by eliminating the need for pre-drilled pilot holes, as well as having tapping ability. Self-tapping screws can tap their own threads, but cannot penetrate metal and must have an existing pilot hole in place.
It is highly important to note that these two types of screws are not interchangeable.
Self-drilling screws are usually crafted of stainless steel, with other less common materials also available. Stainless steel is ideal for this type of screw as it is both resilient and powerful, so it is an excellent choice for most projects.
Other common coatings include:
A power drill equipped with an appropriately-sized driver bit is the best tool for installing self-drilling screws. To position the screw correctly, pre-drill a pilot hole with a diameter just smaller than that of the screw. Although not always necessary, creating a pilot hole adds an extra layer of accuracy and strength when installing self-drilling screws.
It's important to note that speed and torque can play a significant role during installation. For wood materials, self-drilling screws work best when driven at a lower speed to avoid splitting the wood. When installing screws in metal materials, a higher speed and torque is required for the screw to effectively penetrate the material without stripping out.
